DMC Range (Multi-Compressor Condensing Units)
Equipped with Bitzer Compressors
A game changing solution for supermarkets and cold storage facilities
Saving on
equipment footprint
Saving on
installation time and labor
Saving on
frequent maintenance
Saving on
installation time and labor
Saving on
frequent maintenance
Designed & built in Daikin-Hubbard factory 100%
Compact frame designed with compressor beneath the condenser coil, as part of the frame body with fans on top-ensuring low footprint
TRAXOIL Electronic oil management system
Standard configuration with 3 Bitzer Semi-hermetic reciprocating compressors connected in parallel.
800mm AC fans – from 2 to 5 fans
Options:-EC fans-Water-cooled
condensation for
bigger capacities.
Fully loaded factory fitted control box inbuilt with carel Prack. Easy connected to BMS
Fully Loaded Multi-circuit piping , line components, pressure controls enabling PLUG and PLAY model at site.
- Compact frame designed with compressor beneath the condenser coil, as part of the frame body with fans on top-ensuring low footprint
- TRAXOIL Electronic oil management system
- Standard configuration with 3 Bitzer Semi-hermetic reciprocating compressors connected in parallel.
- 800mm AC fans – from 2 to 5 fans Options:-EC fans-Water-cooled condensation for bigger capacities.
- Fully loaded factory fitted control box inbuilt with carel Prack. Easy connected to BMS
- Fully Loaded Multi-circuit piping , line components, pressure controls enabling PLUG and PLAY model at site.
ST ANDARD CONFIGURATION:
- Casing made of light grey folded sheet metal
- Built in liquid receiver complete with drier/ filter, dual PRV and sight glass.
- Discharge and suction lines with isolation valves.
- Oil system complete with electronic compressor oil level control.
- Helical oil separator with reservoir
- Suction filters.
- EHP &LP switches.
- Equipped with Carel Prack controller.
- Available in 60 &50 HZ.
OPTIONS:
- EC fans for air- cooled condensation.
- Water-cooled condensation for special large capacity applications.
- Suction accumulator for low temperaturemodels.
Less footprint compared to
conventional refrigerartion systems
Option for inverter contributing
to power savings

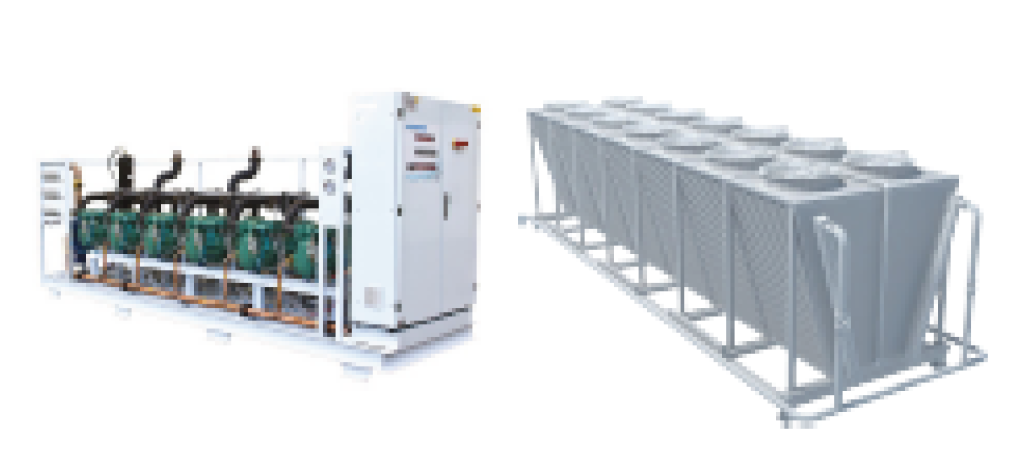

Easy to retrofit old condensing unit
or power rack systems with DMC
100% factory assembled
incurring nillinter-unit work at site
Option for water-cooled
condensation for higher
capacity applications
Daikin assured quality
service support to full
outdoor systems
Savings on average
insallation time

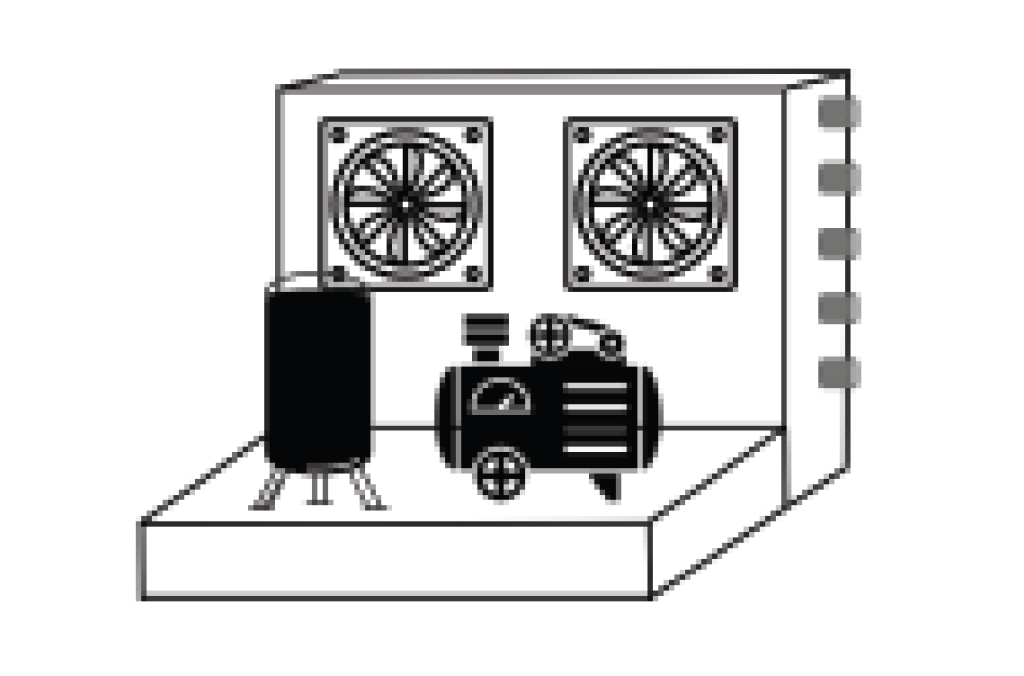

Individual system
Basic Low- Cost solution with
high installation, operational
and maintenance costs.

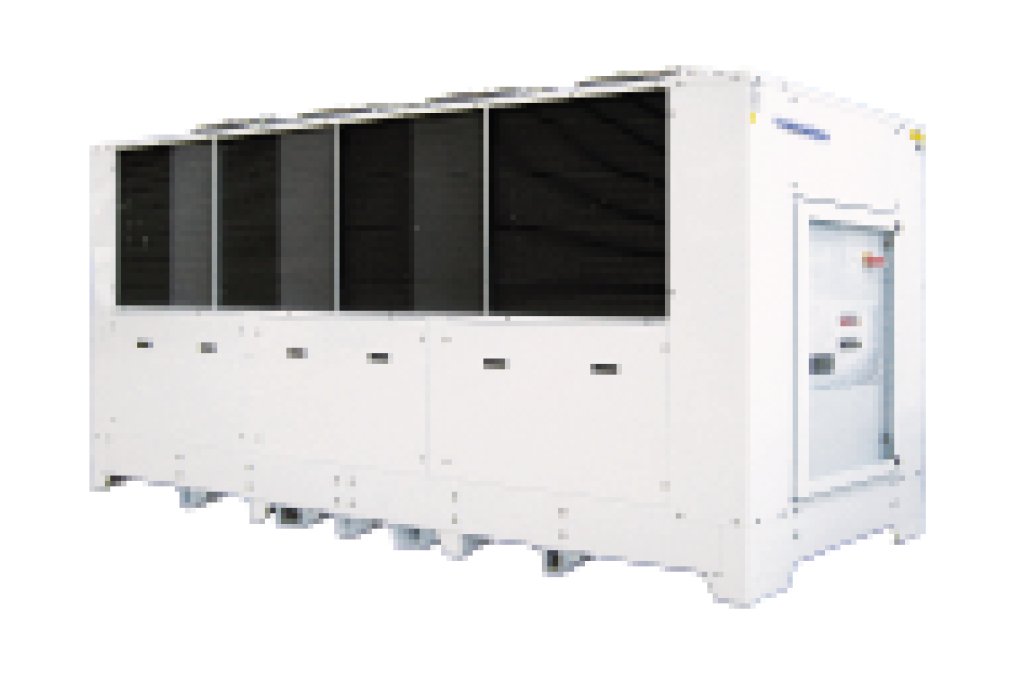

DMC System
Solution with low installation, operational and maintenance costs+ value added benefits.
